Residential Design - 37 Bulwer St
Project Description
In a back alley industrial space at 37 Bulwer St, I designed a custom residence for my client who suffered from PTSD. At least 50% of the exterior brick walls was kept intact due to the project requirement, including a fire escape and a backdoor on the south façade. The original site covered an area of 13.8m by 8.8m, and the area for extension on the west side was of 13.8m by 6m.
This is an individual project.
Software: Revit, AutoCAD, Photoshop, InDesign
Summary
To alleviate the client's hypervigilance and intense fear resulted from PTSD, this renovated house has an open floor plan with minimized use of interior walls and a central atrium to expend the vision between each floor.
With the concern of the noise sources, privacy, illumination, ventilation, and the fact that the house is too close to the street and adjacent buildings, the north, west, and east façade of the house are more enclosed compared to the south façade.
The house is expanded over the extension area for more versatile interior space planning, while the widened space is beneficial for the alleviation of the client's symptoms and him to achieve the goals of his new life.
Site Analysis & Design Considerations
Construction Constraints
A 1.2m wide sidewalk spans in front of the building at the north side; standing on the sidewalk are wire poles with the approximate height of 6m, and a row of garbage cans; no extension is allowed over the sidewalk.

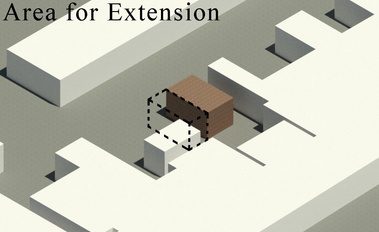

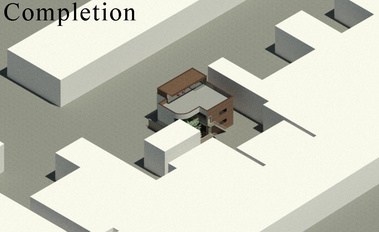

Extension
A space on the west is allowed for extension based on the project description. All the space is used to incorporate a backyard, a private parking space, and more flexible interior programming.
Noise Analysis
A construction zone is right next to the west side of the project site producing a loud noise in 60dB - 80dB. This level of noise may cause hearing damage if exposure is prolonged or excessive, and may trigger flashbacks or other symptoms of PTSD for our client. Other sources of noise may come from vehicles passing by at the north side and east side, and the school right across Bulwer St.
Visibility & Privacy
Adjacent office buildings at the east and west side of the project building have blocked most of the vision, and their distances in-between leave privacy concerns as well. Therefore, windows would be minimized on the west and east façade.

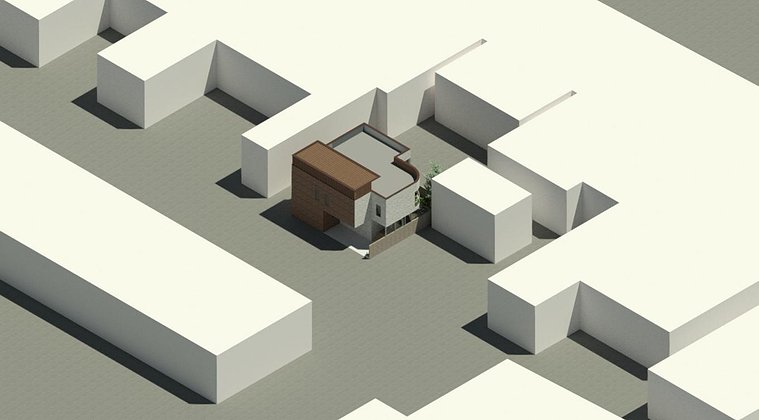

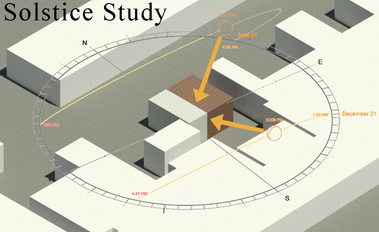

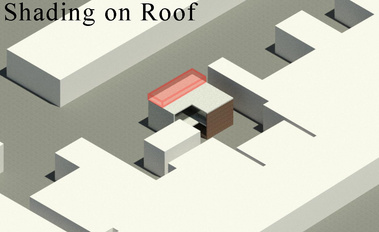

Solar Analysis
Low-rise buildings around the project site allow direct sunlight to come into the project building from the south and to the rooftop. Therefore, the south façade would be open up, and the solar-power collection systems would be adopted for sustainability achievement.
Wind Analysis
Based on the wind statistics in Toronto taken between 2007 - 2019 daily, the annual dominant wind direction is from northwest to southwest, though wind also comes from the southwest in December, January, and July. More windows, therefore, would be added on the south and north façade for better ventilation.

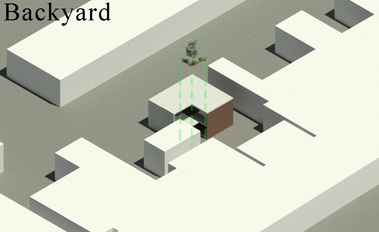

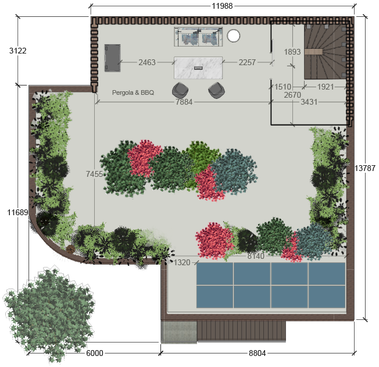

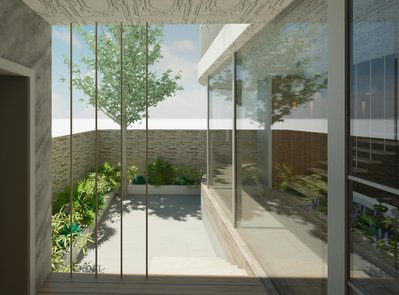

Backyard
A part of the south corner is subtracted for the backyard; a tree is put there to hide the backyard from the adjacent building.

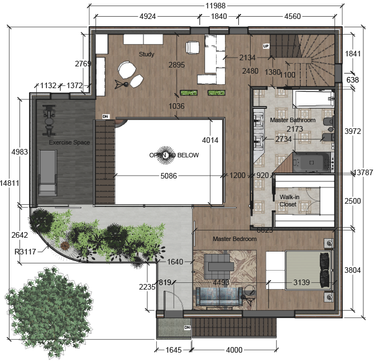

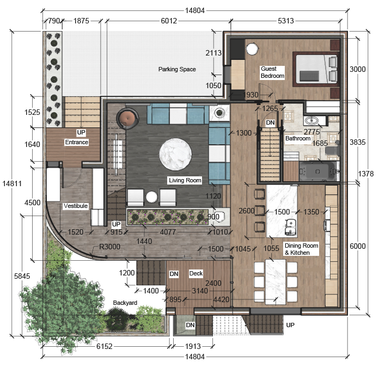

Design Highlights

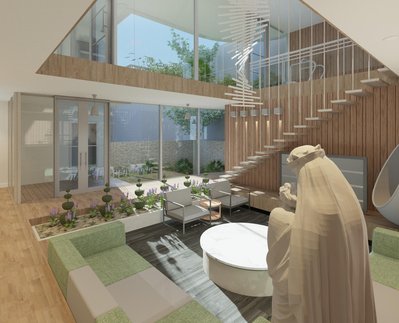

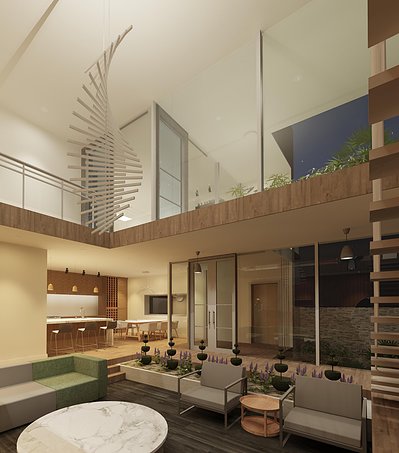

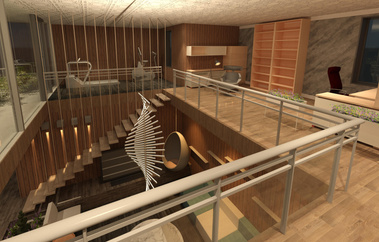

The open floor plan with minimized use of interior walls and the central atrium expend the vision between each floor and alleviate the client's symptoms.
The extended area ensures enough space for hosting supporting groups, taking counseling, and family reunion, based on the client's expectation.

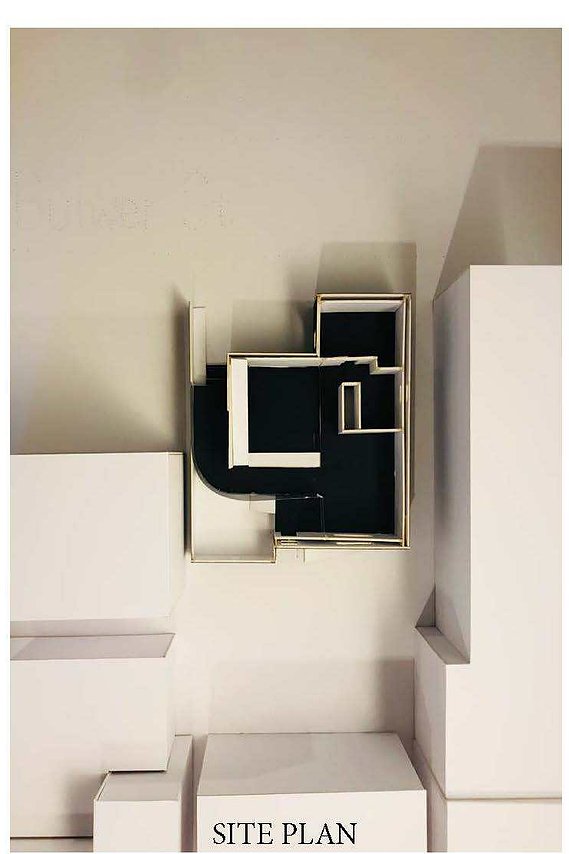

Physical Model

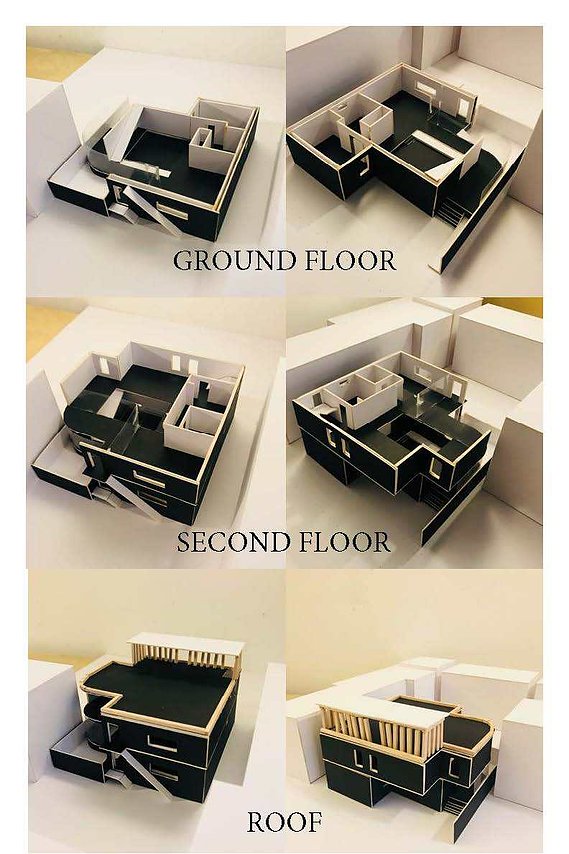

Cardboard, Acetate Paper, & Wood

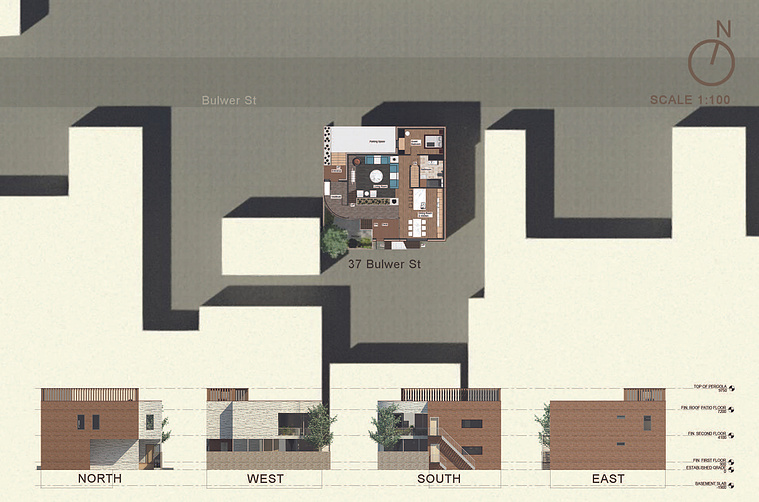

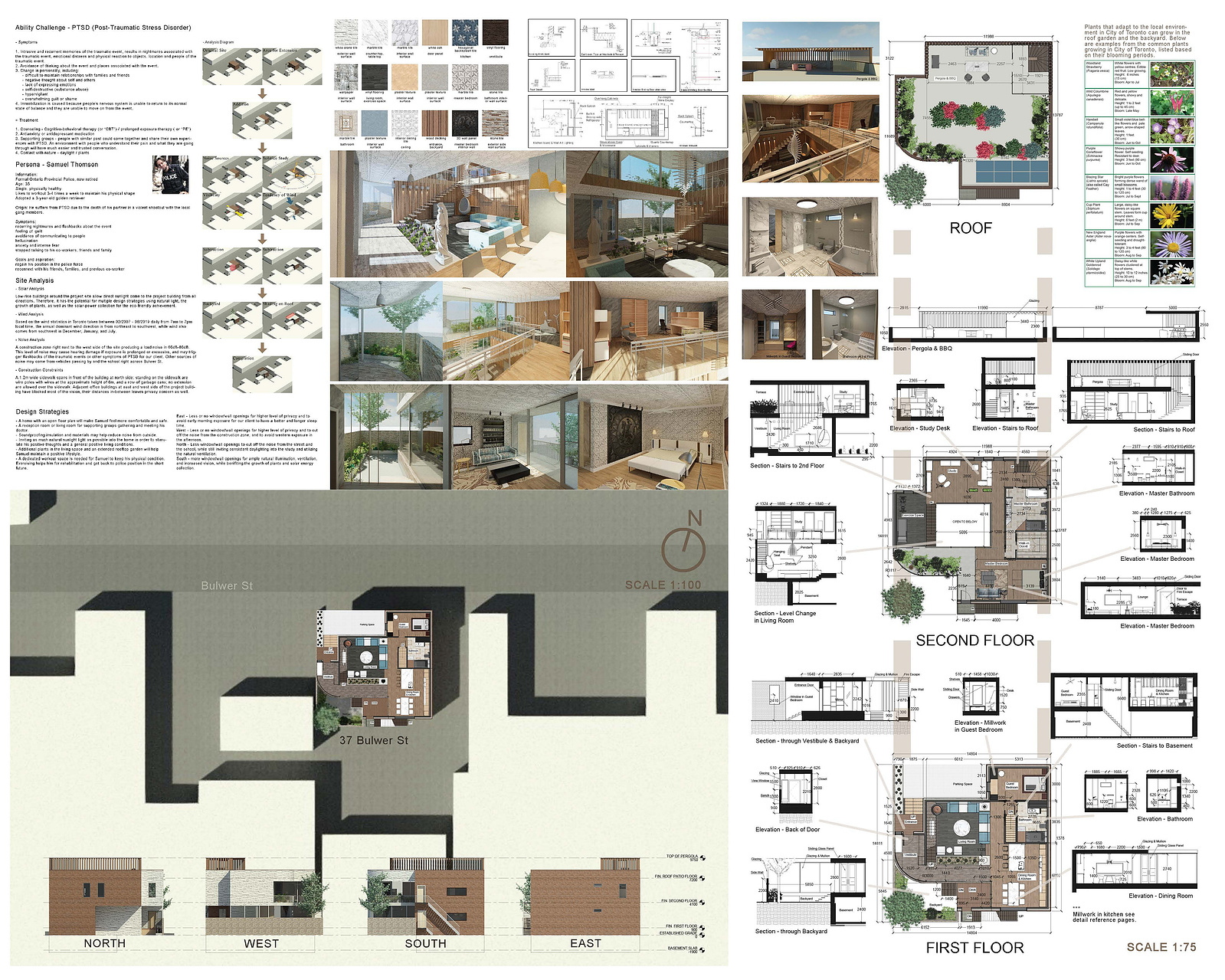

Presentation Board
◆ ◆ ◆

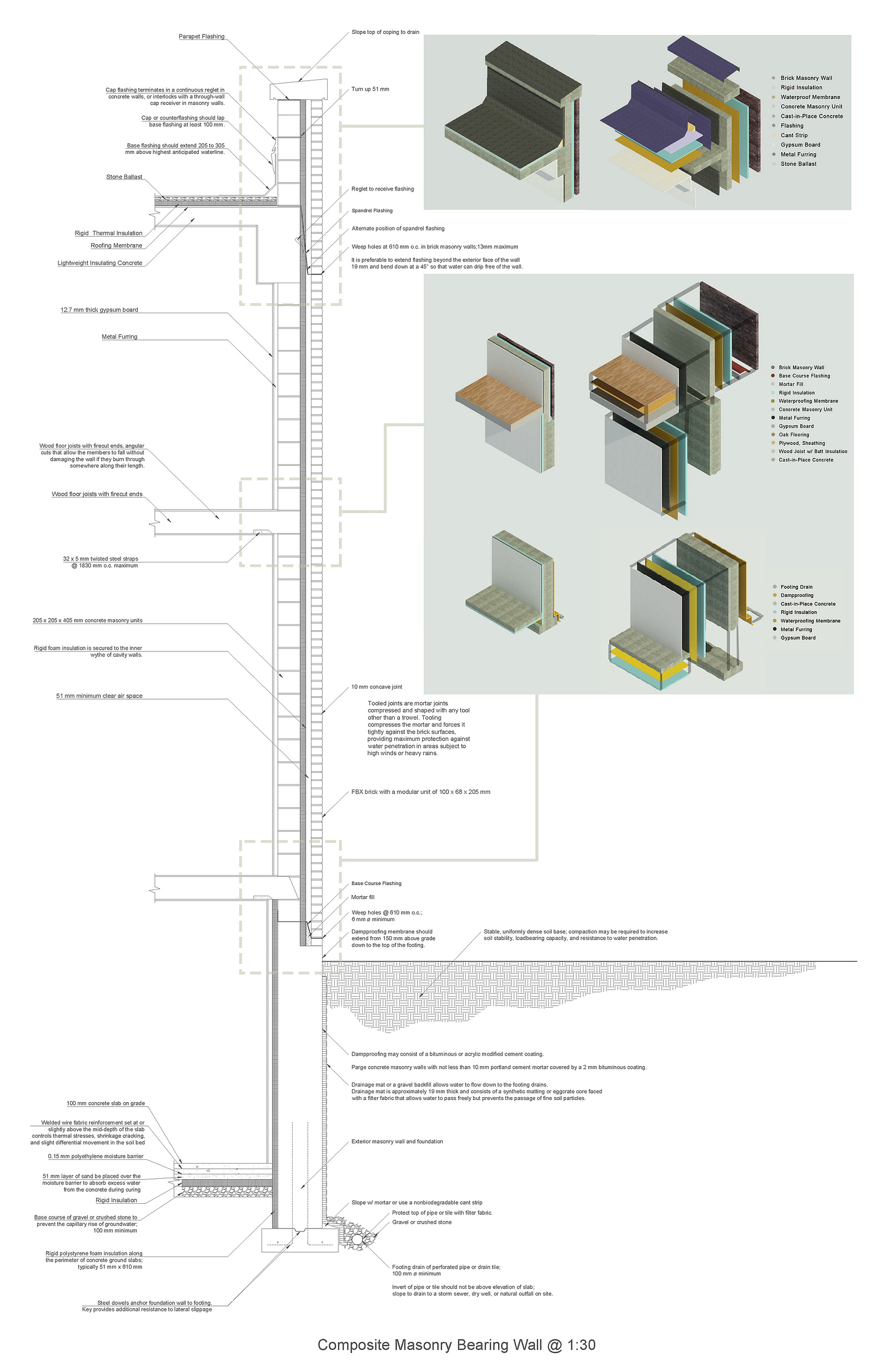

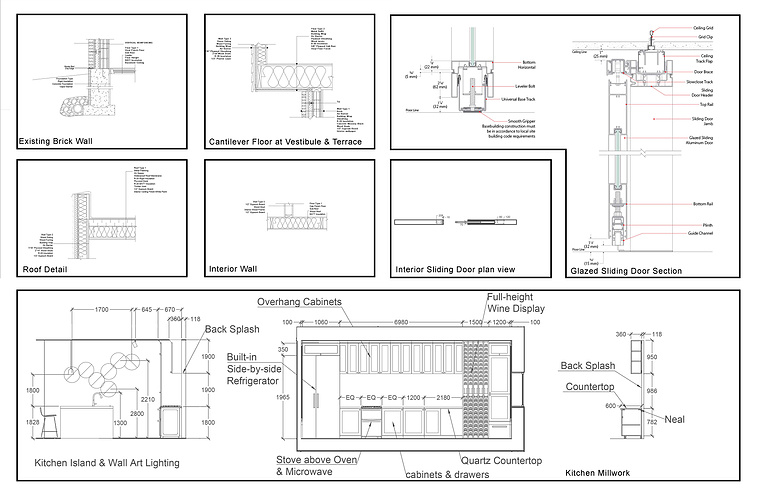

Additional Information

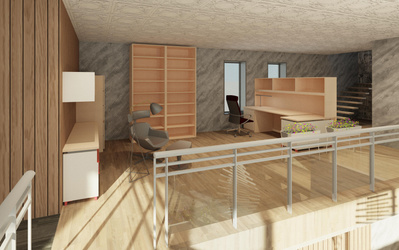

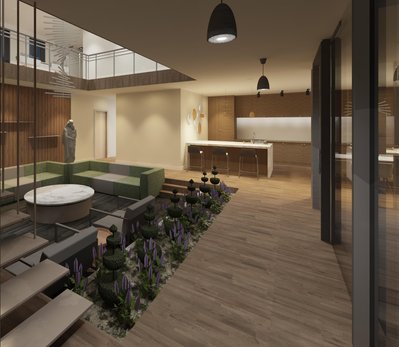

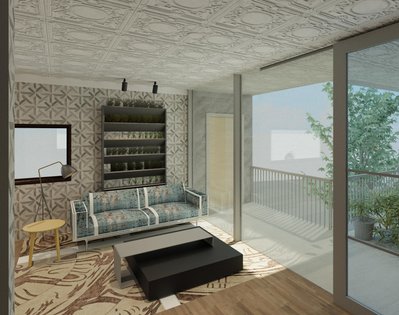

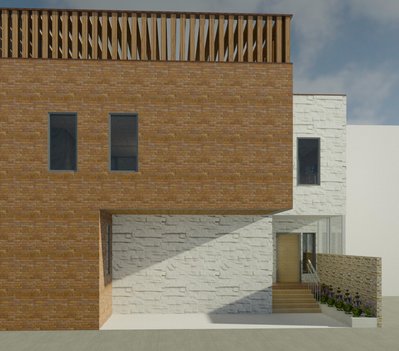

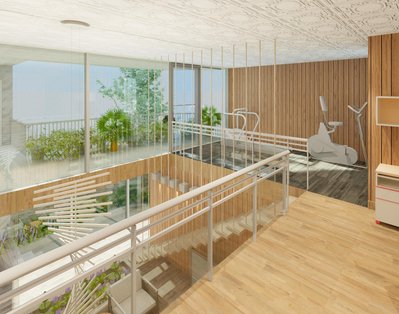

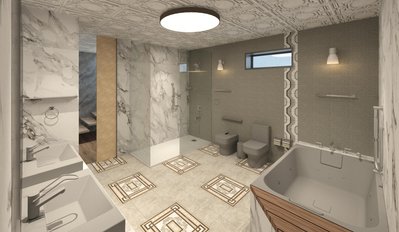

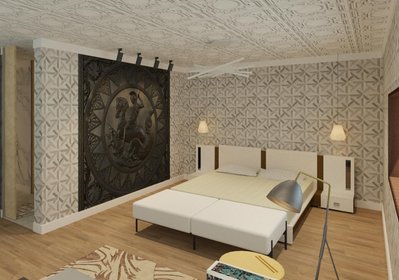

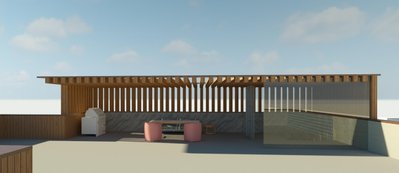

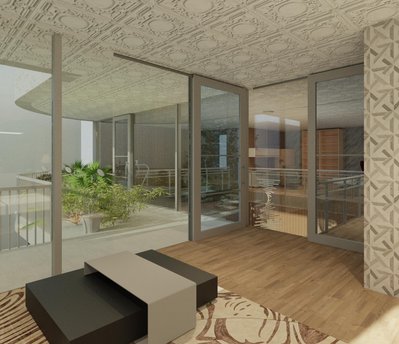

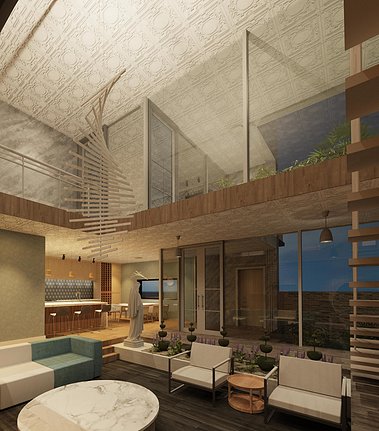

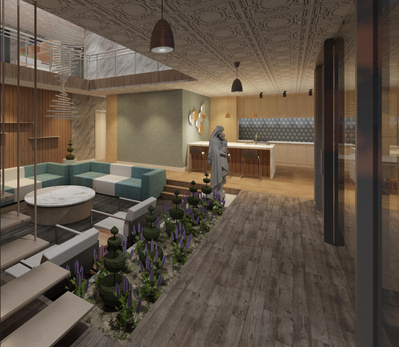

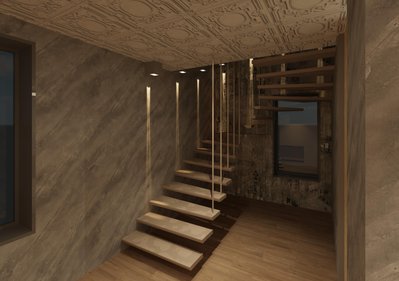

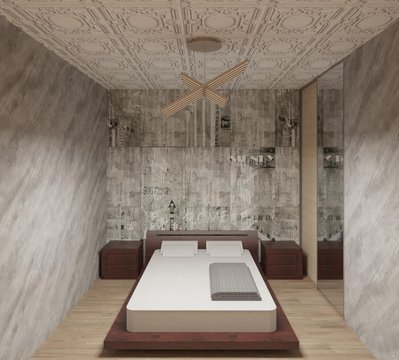

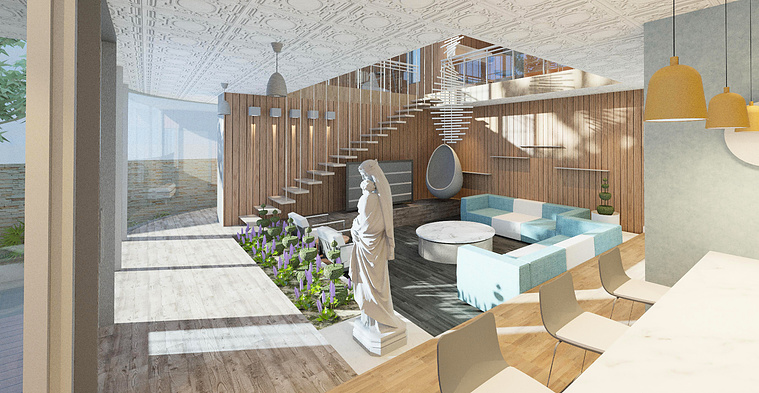

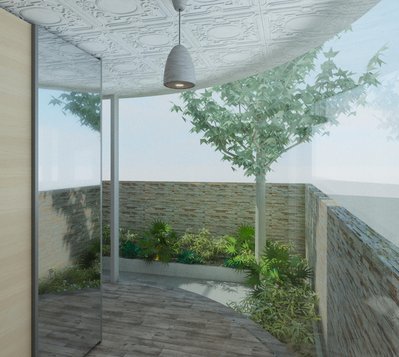

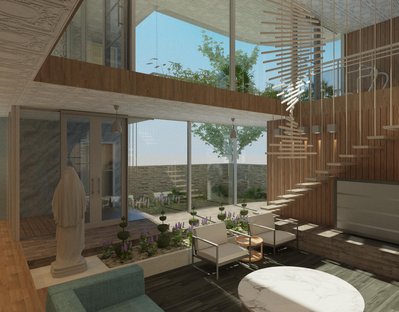

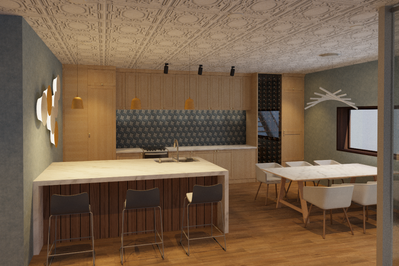

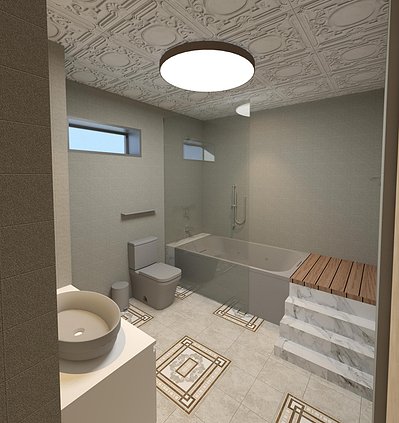

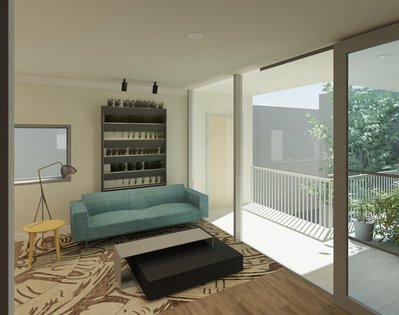

Renderings with Descriptions

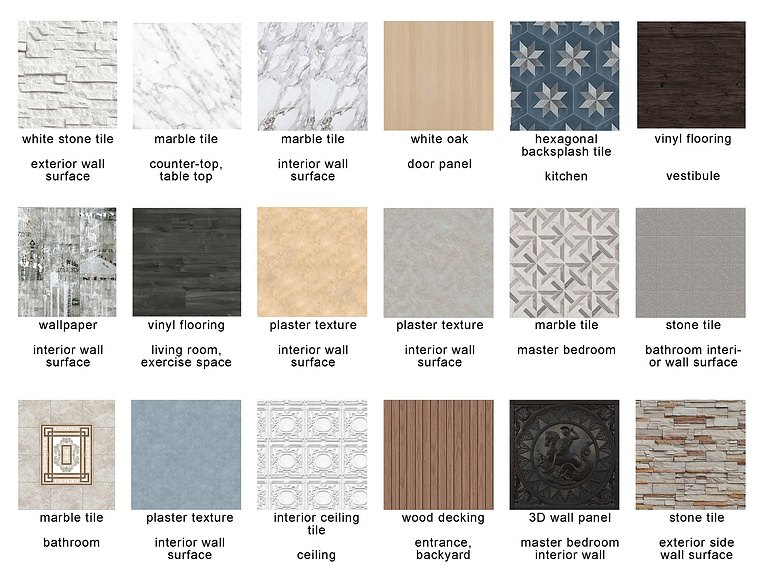

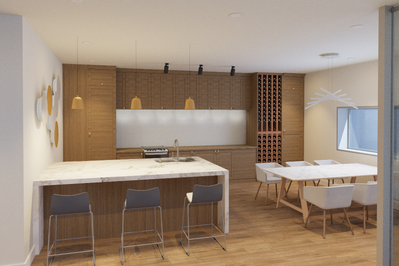

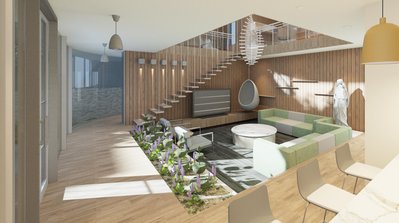

Alternative Design 2020 (change on finishings, materials, & layout)
Persona
Samuel Thomson
- was a police officer, aged 35, now retired
- single, physically healthy
- would like to exercise 3-4 times a week to maintain his physical shape
- suffers from PTSD (post-traumatic stress disorder) due to the death of his partner/best friend during a mission
Symptoms
- recurring nightmares and flashbacks about the traumatic event
- feeling of guilt
- avoidance of communicating to people, including friends and family
- anxiety and intense fear
Treatment
- take counseling with doctors/psychologist
- take antianxiety or antidepressant medication
- join supporting groups to make communications and share experiences with other people
- contact with nature - daylight/plants
Goals and Aspiration
- regain his position in the police force, and most importantly, to reconnect with his family and friends.
